Introducing rediwall® 200 Curve Panel.

The new shape in permanent formwork.

arrow element

Introducing RW200 Curve Panels – a fast alternative to traditional curved wall solutions.

The new AFS Rediwall® Curve Panel integrates seamlessly into the RW200 interlocking panel system allowing for total wall design flexibility.

Easy to install, panels have a minimum curve radius of 0.5-metres, come in a 15-degree segment panels , are available in heights of 3m and 3.6m, and are finished in the standard rediwall® colour.

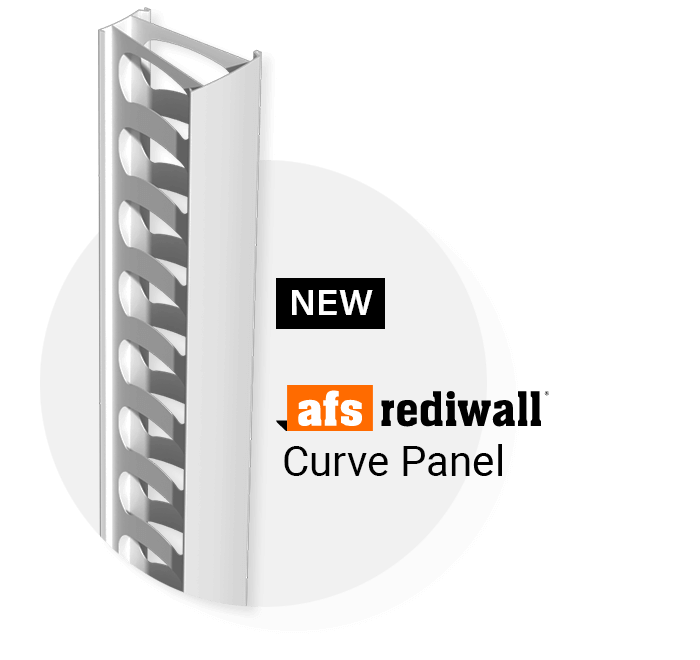

AFS Curve Panel System intro image 3
CSR Logo no Border

Backed by CSR

AM 2021 Logo

Certified Australian-made

CodeMark AFS Rediwall Colour AUSTRALIA 30107 100px

CodeMark Certified

GEC Claim Authenticated mark 2

GECA Claim Authenticated

pvc stewardship

Certified Silver

4 Key Features of the Curve Panel

Panel size icon

Convenient panel size and radius

Available for the RW200 profile, in 3m and 3.6m panel heights, with a 15-degree segment panels to create tight curved walls down to as small as 0.5-metre radius.

Compliant icon

Compliant

Rediwall is CodeMark certified to the National Construction Code (NCC), and meets the relevant requirements for structural, load bearing reinforced concrete walls designed in accordance with the (AS3600-2018) Concrete Structures Code and achieving a fire rating up to FRL 240/240/240.

Integrated system icon

Integrated system

The new AFS Rediwall® 200 Curve Panel integrates seamlessly into the RW200 interlocking panel system allowing for total wall design flexibility.

Fast solution icon

Fast solution

Delivered to site ready to install, there’s no cutting or drilling required, resulting in less on-site preparation.

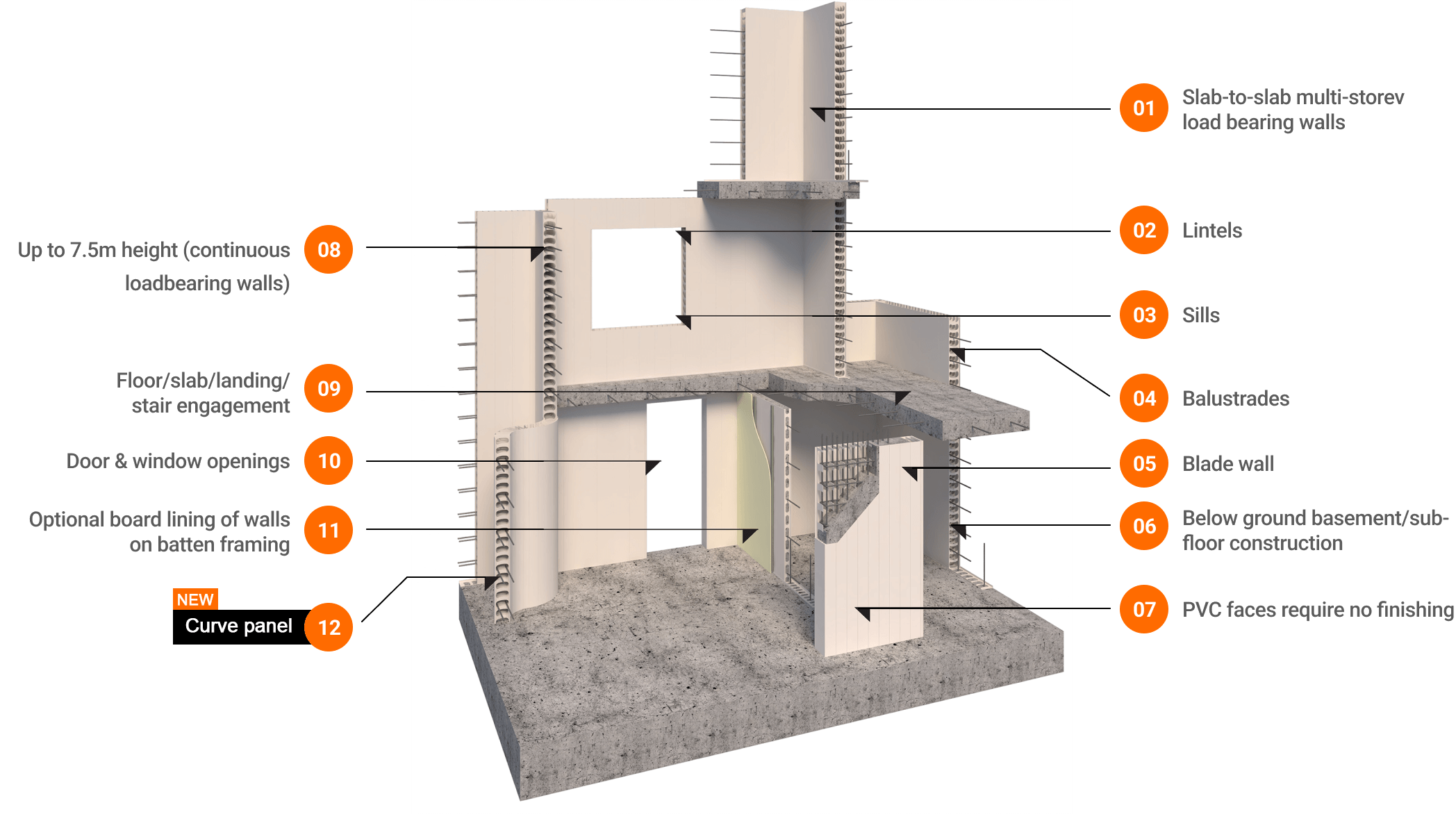

INSTALLATION

Seamless integration into existing Rediwall® system.

Combining functionality with style to deliver a simple solution for on-trend curves, it integrates seamlessly into the RW200 interlocking panel system allowing for total wall design flexibility.



AFS Curve Panel sec 3 V3

Download the AFS Rediwall® Curve Panel flyer

AFS GTM Curves Flyer Opt 01
